Dimensions
Width: 29.88" (75.9 cm)Height: 36" (91.4 cm)Depth: 28.88" (73.4 cm)
Shipping Dimensions
Width: 31.5" (80.0 cm)Height: 43.5" (110.5 cm)Depth: 30.5" (77.5 cm)
Weight
180.00 lbs (81.6 kg))
Key Features:
- Downdraft
- Even-Heat True Convection
- Steam Rack
- Large Capacity
- Four Cooking Elements
Downdraft
The ventilation system is integrated right into the range so a separate hood is not needed. Smoke and odours can be removed and taken outside or air can be filtered and recirculated inside. A duct-free kit can be purchased separately.
Even-Heat True Convection
The unique bow-tie design and convection fan ensure the inside of the entire oven is heated to, and stays at, the perfect temperature.
Steam Rack
Enhance cooking results by providing additional moisture to the inside of the oven.
Large Capacity
This electric slide-in range provides a large, 6.4 cubic foot cooking capacity to easily handle multiple dishes at once.

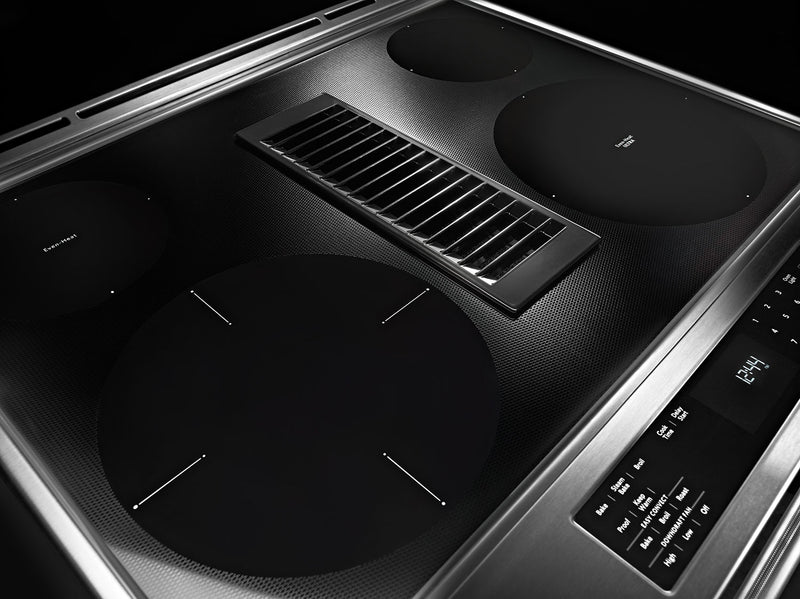

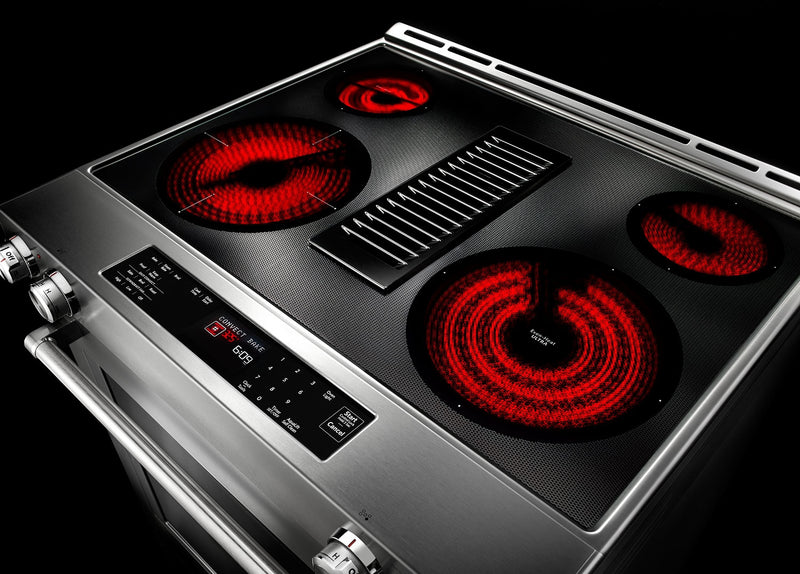

Four Cooking Elements
Four independent cooking surfaces allow you to do more on your range. This cooktop features a double cooking zone of six and 10 inches, one 10-inch zone and two six-inch cooking zones.
Full Features and Specifications
Cooktop Features:
- Cooktop Element Style: Radiant
- Left Rear Element-Burner Type: Radiant Hyper
- Right Front Element-Burner Power: 3,200 W
- Right Front Element-Burner: Size 10"
- Right Front Element-Burner Type: Radiant Hyper
- Right Rear Element-Burner Power: 1,200 W
- Right Rear Element-Burner Size: 6"
- Right Rear Element-Burner Type: Radiant Single
- Cooktop Surface Colour: Black
- Cooktop Surface Material: Ceramic Glass
- Number of Cooking Element-Burners: 4
- Left Front Element-Burner Power: 3,000 W
- Left Front Element-Burner Size: 12"/6"
- Left Front Element-Burner Type: Radiant Dual
- Left Rear Element-Burner Power: 1,300 W
- Left Rear Element-Burner Size: 6"
Controls:
- Door Type: Metal & Glass
- Handle Material: Metal
- Handle Type: Stainless Steel Towel Bar Handles
- Selections: Bake, Broil, Cancel/Off, Clock, Cook Time, Delay Start, Keep Warm Setting, Proofing, Steam Bake, Timer
- UL: Yes
- Star K Compliant: Sabbath Mode
Configuration and Overview:
- Fuel Type: Electric
- Range Type: Slide-In
- Size: 30"
- Capacity: 6.4 Cu. Ft.
Oven Features
- Automatic Convection Conversion Temperature Adjust: Yes
- Heating Element On Indicator Light: Yes
- Hot Surface Indicator Light: Yes
- Power On Indicator Light: Yes
- Bake Element Power: 3,600 W
- Broiler Element Power: 4,000 W
- Broiler Location: Top of Oven
- Convection Element Power: 3,200 W
- Convection Element Type Single-Fan
- Convection Functions: Bake, Broil, Roast
- Hidden Bake Element: Yes
- Light Type: Incandescent
- Number of Oven Lights: 2
- Number of Oven Racks: 3
- Number of Rack Guides: 7
- Oven Rack Type: 1 Max Capacity, 1 Gliding Roll-Out, 1 Steam Rack
- Self-Cleaning: AquaLift® Self Clean
